Buying: |

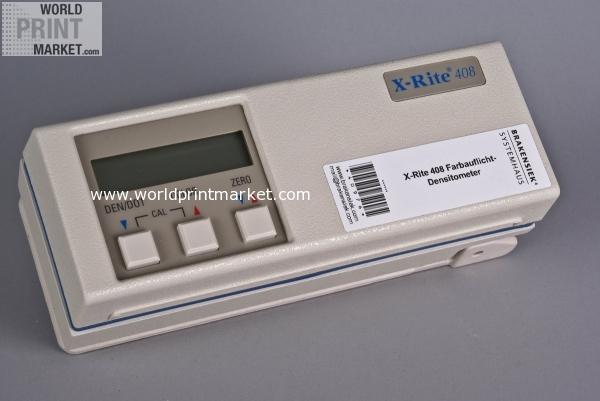

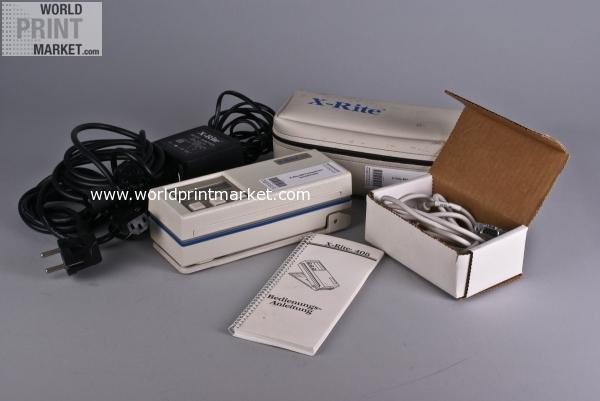

X Rite 408 Color Reflection Densitometer |
|||
|
|
||||
|
|
||||
| ID | 2832 | |||
| Categories | Measuring Devices | | |||
|
|
||||
| Short description | X Rite 408 Color Reflection Densitometer | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | ||||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||
| Long description | X Rite 408 Colour incident light densitometer Not New Technical data: * Announcement: Point matrix LCD display * Measuring geometry: ANSI PH 2.17 / DIN 16536 Multiple sensors layout * Source of light: Luminous thread lamp 3000K DIN, approx. 2856K ANSI * Receiver: Silicon photo diode * Colour terms: G optics for the graphic industry with ANSI status T Computerized Color responses ᵀᴹ E optics with a 47B filter according to. DIN 16536 and Computerized Color responses ᵀᴹ narrow tape optics. * Measuring area From 0 to 2.5D with G and E From 0 to 2.2D with GS, IT, G / LP and E/LP From 0 to 100% of half tone dot * Repeatability +/ 0,01D +/ 1 % with half tone dots size (10 100%) * Linearity: +/ 0,02D or +/ 1 % * inter device set up: +/ 0,02D or +/ 2 % * Diaphragm aperture 408 g, E 3.4 mm 408GS, IT 1.7 mm * Calibration Automatically with Quick cal ᵀᴹ Setting of zero and Slope for density Computerized Color responses ᵀᴹ * Polarisation filter: 2x linearly / LP option * Hot air time: none * Zero value stability: max. +/ 0,01D in 8 hours * Slope stability: max. +/ 1 % per year * Electricity supply: 6 chargeable FO NiCd batteries whole nominal tension 7.2 V with 600mAh (included in delivery) * Loading time: approx. 14 hours * Necessary WS adaptor 408: 90 130VAC, 50 60Hz, 18 W max. 408 X: 180 260VAC, 50 60Hz, 20 W max. 12VDC with 700ma: positive point * Operating temperature: 10 ° 40°C * Measurements per load: approx. in 4500 (according to application kind) * Measuring time: approx., 0.6 seconds * Weight: 800 g * Dimensions: 74x80x196 mm (height x width x length) Accessories (included in delivery): * Power Supply * Operating instructions *Data Cable * Transport pocket |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
| View this article on the vendor's web site. | ||||
