Acard AEC67162M PCI Ultra160 SCSI Controller for Mac OS X


ID 2336
Categories Workstations |

Short description Acard AEC67162M PCI Ultra160 SCSI Controller for Mac OS X
Price (in €) on request

Manufacturer Acard
Model ---
Year of manufacture 0000
Warranty until ---

Long description Acard AEC67162M PCI Ultra160 SCSI controller for Mac OS X

For Mac OS X and Apple PowerMac G5

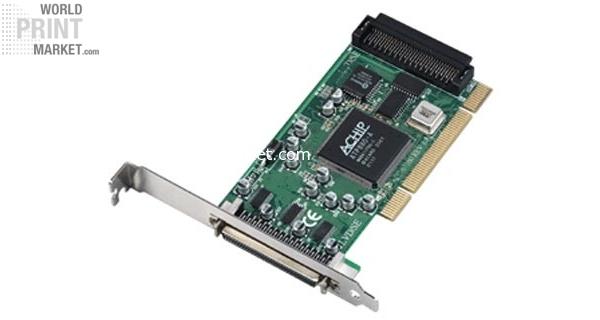

AEC 67162M is a high performance PCI to two channels Ultra160 SCSI, Low Voltage differential (LVD) adapter. AEC 67162M has full features of PCI 64 bit/66 MHz bus mastering transfer capability and PCI enhanced data transfer commands.
AEC 67162M allows you to connect up to 30 external and internal SCSI devices, it is fit your need for Macintosh workstations.

Qualities

2 channel Ultra160 SCSI
SCSI data transfer advises up to 160 mb / Sec by channel
Supports SCSI 1, SCSI 2, SCSI 3, extremist SCSI, Ultra2 Wide SCSI, and Ultra160 SCSI
Support multinational threaded and multinational tasking OS
Supports auto terminator control
PCI Coach master frees CPU from I/O task loading
Supports up to 30 SCSI devices (15 by channel)

Specifications

Upgradeable on board flash firmware
Supports 80MIPs phase RISC SCSI engine
Supports 64 bit/66 MHz PCI bus master
Double edge clocking technology
Supports CRC (Cyclical Redundancy Checking) for data security
Domain validation ensures the data transfer rates at the highest possible advises
Cable length up to 12 metres in LVD mode
Connector:
External Al: 1 x 68pin SCSI connector
Internal: 2 x 68pin SCSI connector

compatible operating systems

Mac OS 9
Mac OS X 10.2. x (non bootable)
Mac OS X 10.3

Weight ---
Dimensions (LxWxH) ---

Location Germany
Region NRW
