Buying: |

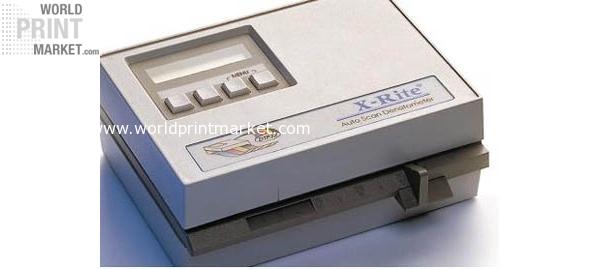

DTP32TR AutoScan Farbdensitometer |
|||
|
|
||||
|
|
||||
| ID | 1687 | |||
| Categories | Measuring Devices | | |||
|
|
||||
| Short description | DTP32TR AutoScan Farbdensitometer | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | ||||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||
| Long description | DTP32TR AutoScan color densitometer Measure T status, visual density according to ISO and the tone of films, polyester plates and proofing materials. Compatible with many third party calibration programs Automatic Strip Reading Densitometer for Calibration of Color Output Devices The DTP32 provides calibration and quality control for PostScript ® color copiers, color printers, color proofing and systems. The calibration of any color output device will drift over time, causing color and fluctuations in screen values. Colors may vary due to changes in room temperature, humidity, or changes in paper, toner, or other automatic scanning densitometer materials.The DTP32 Ensures consistent, accurate color on every job. Calibration Software Interface The DTP32 interfaces directly with most calibration software through a direct cable link to a computer. Simple, Step By Step Operation • Output a calibration test print from a color printer or copier. • Feed it through the cars DTP32 scanning mechanism. • The DTP32 sends readings to the color density control software via serial interface. • Within minutes, the printer is calibrated and ready to deliver accurate, consistent prints. Features • Is supported by a Majority of 3rd party software, RIP and printer manufacturers. Visit X Rites web site "Color Enabled" for information: www.x rite.com/support/partners.asp • Status T color response (the industry standard for wideband reflection densitometer). • Interfaces with IBM compatible Macintosh ® Sun, and SGI platforms. • Fast, time saving process five calibration completes in under minutes. • Optional DTP32TR offers transmission and reflection combination technology. • Measures paper and film output. • Small desktop footprint. • Accessories included: Calibration reference Operation manual PC / Mac interface cables Power supply Benefits • Color consistency throughout a job and over time. • Sharp, accurate, color. • Predictable, repeatable results. • Quality control of on demand, including color proofing, large format and color prints. • Fast, easy to use system • No trial and error. • Fewer service calls, lower overall costs. Specification Measuring Geometry Reflection: by ANSI PH2.17/ISO 5/4 multi sensor array Optional Transmission: 2 per ANSI PH 19/ISO 5/2 Light Source Gas pressure filament lamp with approx. 2850 ° K color temp Lamp life, approx. 1,000,000 scans @ 11 " Receiver Blue enhanced silicon photodiodes System Response ANSI / ISO Status T Measurement Range Reflection: 0.00d to 2.50D absolute Transmission: 0.00 to 4.00d absolute Repeatability ± 0.01D, 0 to 3.0D ± 1%, 3.0 to 4.0D Linearity ± 0.01D or ± 1%, 0 to 3.5D ± 3%, 3.5 to 4.0D Zero Stability ± 0.01D max Calibration Automatic w / QuickCal ™ Measuring Area 2mm x 4mm, 2mm in the direction of travel Measuring Location 3.0 "from rightmost stop Adjustable stops in .5 "increments from .5 to 3.0 " Fixed slot for up to 38mm film Sample Characteristics Thickness: 0.003 to .015 " Size: Unit is open at one end and can accept any size sheet Sun long as it can be pulled evenly through the unit. Patch size: .400 "(10.16mm) in minutes. direction of travel by .350 "min. wide 1mm wide 1.0D contrast space between patches or .5 D min difference between patches Transport Speed ~ 1.2 "/ sec Measurement rate Adequate to measure patches. 4 "minimum in the direction of travel Communication Interface / Protocol (As described in the X Rite DTP RCI manual) I / O port: (10 circuit modular jack) Patented bi directional RS 232 at <_ 19.2k baud Remote control: via standard X Rite DTP series RCI commands This protocol Allows for RCI downloading of custom measurement strips and display data remotely, calibration, and remote parameters configuration. Data format: Transmitted in Density, + Dot Dot, or Reflectance. Output has x10 capability. Power Requirements & Connection +12 V @ 700ma 2 circuit jack with 03.05 plus tip using @ either SE30 61 (115V) or SE30 62 (230VAC) adapter Physical Dimensions 2.75 "H 7.2 "W 6.0 "D Weight large 5.0 lbs. net lbs 2.5. Environmental Operating temp. range +10 ° to +35 ° C; 30% to 60% RH. Storage temp. range 40 ° to +60 ° C, 5% to 95% RH. Accessories Provided Calibration Reference Operation Manual PC & Mac interface cables AC adapter Either 115VAC (P / N SE30 61) or 230VAC (P / N SE30 62) Optional Accessories RCI Interface Manual (P / N DTP32 506) Models DTP32R Reflection only 115VAC DTP32TR Reflection / transmission 115VAC DTP32RX Reflection only 230VAC DTP32TRX Reflection / transmission 230VAC |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
