Selling: |

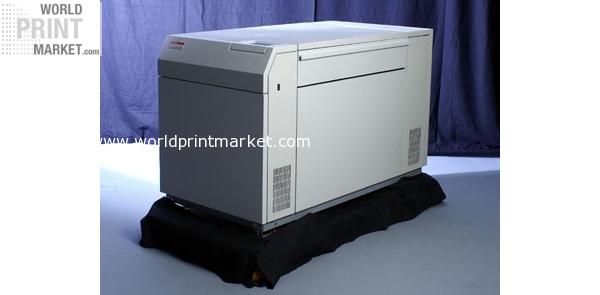

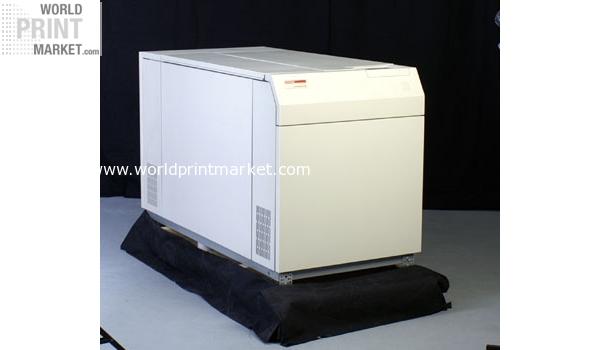

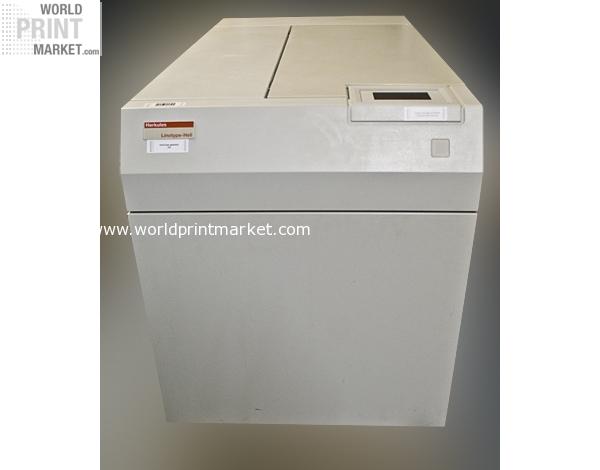

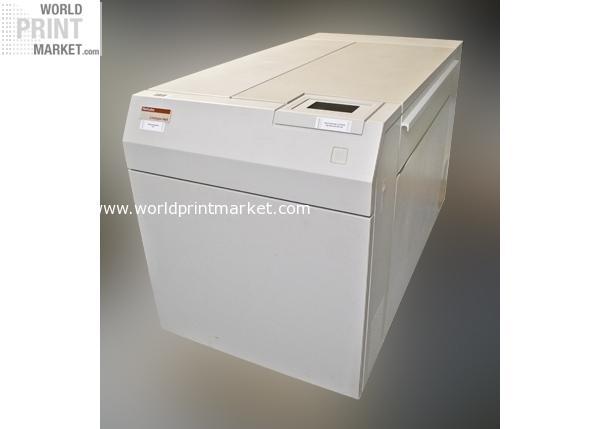

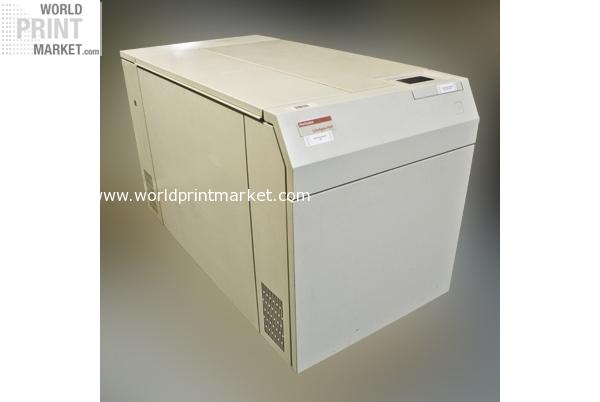

Linotype Hell Herkules Classic |
|||
|
|
||||
|
|
||||
| ID | 1423 | |||
| Categories | CTF-Systems | | |||
|
|
||||
| Short description | Linotype Hell Herkules Classic | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | Wick | |||
| Model | --- | |||
| Year of manufacture | 2011 | |||
| Warranty until | --- | |||
|
|
||||
| Long description | Linotype bright Hercules Classic Non new Type: 2081 00 Construction year: 11/1993 Professional film exposure in the format 750 x 558 mm. Exposure principle: Innentrommelbelichter Exposure format: 750 x 558 mm Resolution: In 5048 dpi Punch: Head punch Hercules is cleaned and tested and is demonstration ready in our presentation rooms any time. Heidelberg (Linotype Hell) Herkules Classic Specifications Imaging principle Indrum principle, deflecting the laser beam a rotating, air cushioned prism Light source Laser diode emission at 670 680 nm Scan line length 558mm/21,96" (inner perimeter of the drum) Resolutions 1270, 1693, 2540, 3387, 5080 dpi 500, 666, 1000, 1333, 2000 ppcm Exposing speed 26 cm / min. at 2540 dpi Maximum screen frequency at film exposure to 120 lines / cm (305 lpi) Repeatability approx. 5μm at full format Output options positive, negative, right, wrong way, duplo, double duplo and quadro Materials in rolls Film, polyester printing films from 0.1 to 0.18 mm, 670 80 nm Capacity of supply cassette max. 60 m with 0.10 mm thick material Maximum exposure area 750 x 558 mm (29.5 x 21.9 inch) Film material widths 280 762 mm (11 30 inches) in 30 mm steps Minimum width and length not specified Dimensions (W x H x D) 1510 x 930 x 780 mm (59.4 x 36.6 x 30.7 inch) Weight approx. 510 kg |
|||
|
|
||||
| Weight | 510 | |||
| Dimensions (LxWxH) | 78 x 151 x 93 | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
| View this article on the vendor's web site. | ||||
