Buying: |

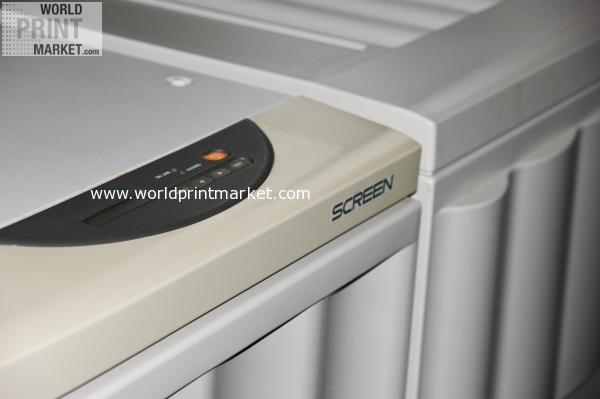

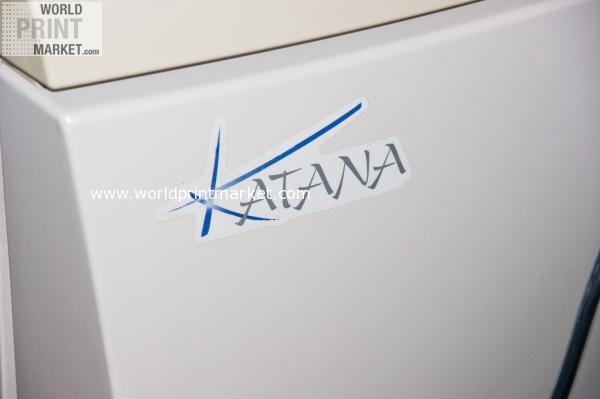

Screen Katana FT R5055 II |
|||
|
|
||||
|
|
||||
| ID | 2886 | |||
| Categories | CTF-Systems | | |||
|
|
||||
| Short description | Screen Katana FT R5055 II | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | ||||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||

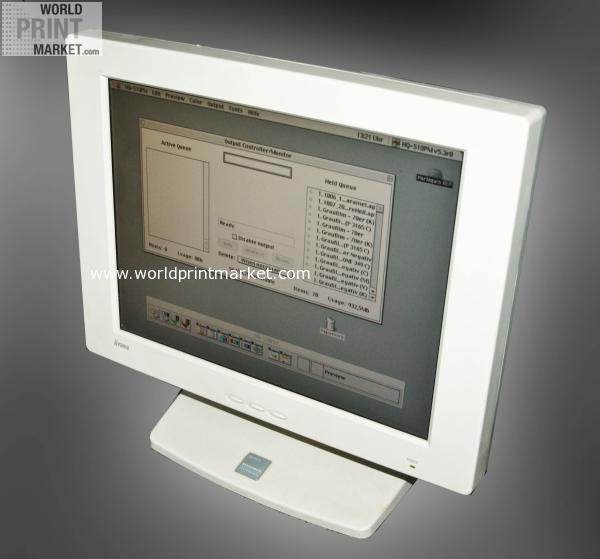

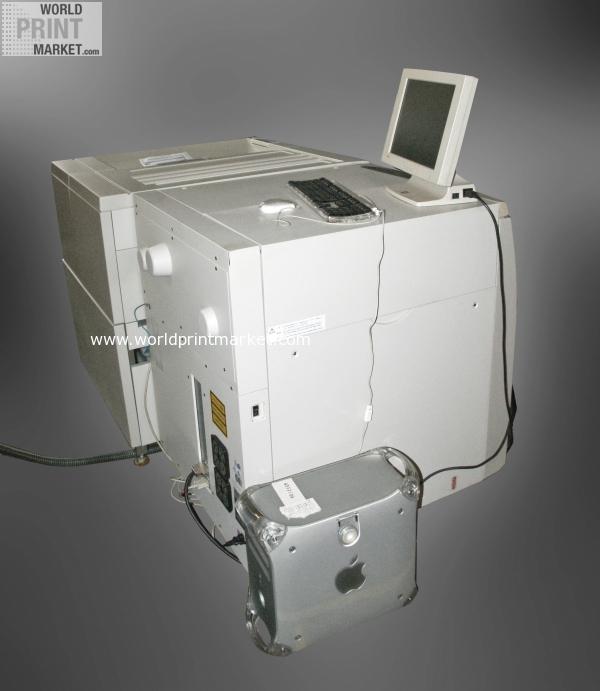

| Long description | Screen Katana FT R5055 II + Online Film Processor LD M1060 + Harlqeuin Level 3 PDF RIP with Mac Computer with MDD Not New Category: Imagesetters Manufacturer: Screen Modell and delivery contents: Screen Katana FT R5055 + Film Processor LD M1060 + Harlqeuin Level 3 PDF RIP Year of manufacture: Jun. 2001 Location: Dortmund, Germany Screen Kanata FT R5055 Technical data from the manufacturer: Exposure system Flatbed imaging system, 635 nm laser diode, polygon mirror Resolutions 1,000/1,200/1,500/1,800/2,400/3,000 dpi Registration accuracy ±25 microns (± 1 mil) on overlaying sheets (film) ±50 microns (± 2 mil)* on overlaying sheets (flexible plates) Media types He Ne sensitive film or paper, flexible plates Media widths Film and paper: 254 mm (10") 305 mm (12") 355 mm (14") 406 mm (16") 457 mm (18") 508 mm (20") 558 mm (22") 609 mm (24") Flexible plate: From 254 to 615 mm (10" to 24.2"), in 1 mm increments Max. imaging width Film and paper: 575 mm (22.6")** Flexible plate: 556 mm (21.8")** Media roll length 61 m (200) Media output To output cassette or inline processor Output cassette capacity 15 m (49.2) Compatible RIPs HQ 510PM, HQ 510PC, Trueflow Rite I/F change Fast PIF Power requirements Single phase 100 V to 120 V, 0.4 kW, or single phase 200 V to 240 V, 0.4 kW Environment Operating:18 to 28°C (64.4 to 82.4°F), 50 to 70%RH Down Time:15 to 33°C(59.0 to 91.4°F), 30 to 80%RH Storage:0 to 50°C(32.0 to 122.0°F), 10 to 80%RH Punch unit (optional) Stoesser, Bacher, Protocol, Western Lithotech, Screen, and other pin systems Inline processor (optional) LD M1060 * Registration accuracy is guaranteed only for flexible plates wider than 508 mm (20"). ** Image quality can only be guaranteed for images up to a width of 550 mm (21.6"). Spare Parts: As certified matchpart GmbH (Germany) Distributor we provide spare Parts. Repair: Our Partner matchpart GmbH (Germany) offers circuit board repair service. If you are interested for a product you already own, we need serial number, YOM, sparepartnumber and type of error. Medical Instruction: A medical Instruction is available at extra cost. Supplies: Please ask for supplies. Manuals: The manual will be send as PDF and the original one will be shipped at additional cost. Information for buyers: This machine is sold. You find other machines on our website. Please use the search button on our website. Our offers are changing daily. Remote Kit: If you buy a remote kit from us, we can help you diagnosing Errors. You can buy sets of 3 working hours in advance. Wearing Parts: During repair, wearing parts can be replaced preventively. |
|||
|
|
||||
| Weight | 200 | |||
| Dimensions (LxWxH) | 206,3 x 106 x 100,3 | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
