1. Core scooter
2. Nipson in 7000 400, 480 dpi with paper feed bottom plate
3. Core pathway storage
4. Core job separator bake folder
5. display belt
Line 2
1. Small batch supplier from transport belt
2. Nipson in 7000 400, 480 dpi with paper feed bottom plate
3. Core pathway storage
4. Core job separator bake folder
5. display belt

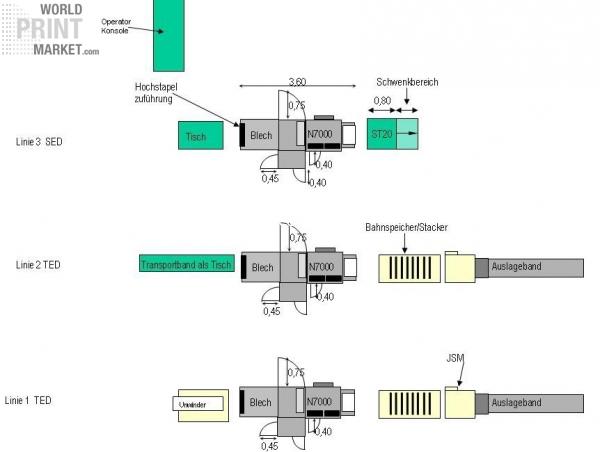

Line 1 and line 2 are connected to each other with in underground pathway. Both machines can used as a Twin (TED).
The underground pathway is designed to feed paper from every paper input to every printer and afterwards to every postpress mudule.
The lines 1 and 2 were in 1999 new delivered.
Line 3
1. Small batch supplier from table and high batch supplier
2. Nipson in 7000 400, 480 dpi with with paper feed bottom plate
3. Nipson ST20
Line 3 is as SED configured and prints whether with full paper width single sided or with helped paper width stand in sided in one process (SED).
Line 3 what delivered in december in 2000, given a general overhaul with new machine warranty.
All three lines print SDP, IPDS and have a Fast Ethernet/TCP IP SDP OpenPage connection.
Open page in 1999: V7 package AIX T104e Type A
The data preparation works with software GMC Printnet
GMC PrintNet has following components
PrintLayout
PrintFont
PrintProof
PrintJob
PrintLine
PrintAutomat
PrintManager for 2 NIPSON 7000 400 SDP
PrintManager for 2 PCL printer
The maintenance what arranged between the Schmidts bank and GMC.
Later on the software GMC what suited to the interests of Schmidts bank (3. printer...)
Nipson in 7000:
resolution 480 dpi or 240 dpi (changeable)
print speed 404 printing speed German Institute for Standardization A4 at two up, resp. 60 m / min.
printer start with paper sparing speed up
variable speed adjustment from 30 m / min. up to at most speed
contctless flash fixations with precisely max. 50 ° paper temperature
max. paper width 20.5“ (520 mm)
max. print width 18“ (457 mm)
paper weight from 64 164 g / m² *
pre and postpress processing interface
Almost Ethernet card
foot bridge
230/400 V 50 HERTZ
(only model 300 or 400)
line 1 and 2: Single Simplexdruck or both together as twin (T.E.D).
line 3: Simplex and Single Engine Duplex Print with one system (S.E.D).
Line 3 is the printer from the demo room in Neuss, Germany
The Nipson in 7000 TED line costs 121,500.00 EUR,
the NIPSON 7000 SED line costs 73,500.00 EUR.
The ST20, server and operater console are without charging if you buy both lines.
The complete CORE line, below mentioned, costs 67,500 EUR
Unscooter DR 5 (100 m / min.)
Paper unit
any continuous printer
Paper unit
Pathway storage BA 5
Job separator PL 5
Conveyor
