X Rite i1iO Scantable

1375

Categories

Measuring Devices |

Short description

X Rite i1iO Scantable

Price (in €)

on request

Manufacturer

X Rite+GretagMacbeth

Model

---

Year of manufacture

0000

Warranty until

---

Long description

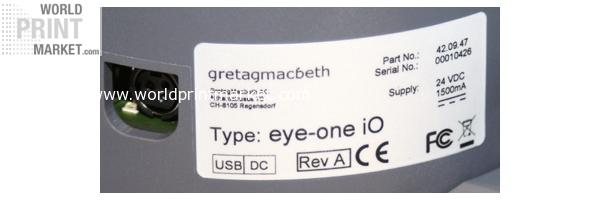

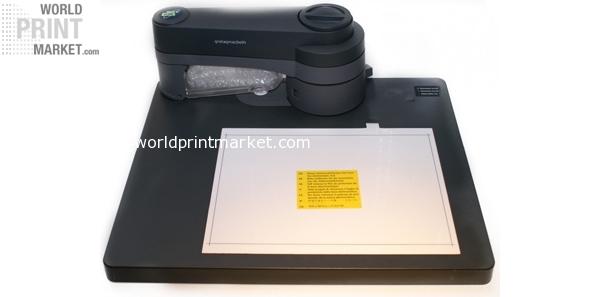

GretagMacbeth Eye One iO scan table

Qualities:

Automatic measuring table for all i1Pro measuring instruments
allows constant and reliable measuring results
avoids manual measuring mistakes
if the productiveness increases
Measuring speed up to 500 fields per minute (depending on the type
used i1Pro)
Suitable for substrates up to 10 mm of thickness

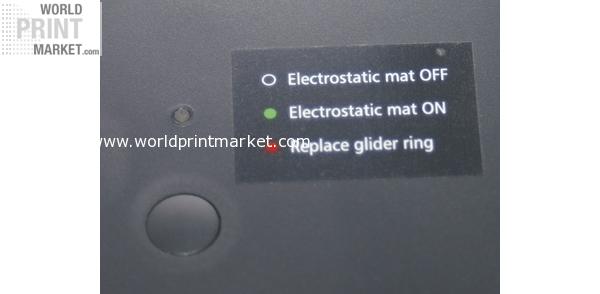

Automatic holding on of the substrate by electrostatic loading of her
Measuring surface
For quick scanning measuring special test charts are required,
the following parametres keep:
TestchartgrÃ¶ÃŸe to 32 cm * 23 cm possibly
Field size minimally 5 mm * 5 mm
Colour distance between two fields Î”E> 10 or
1 mm of gaps between the fields (black or knows)
Files to the expression of test charts and their authoritative files are in him
to respective software programmes available, also the control of the device
permit.
In the single measuring mode every current Testchart is measurable (5 mm * 5 mm of fields).

technical data:

i1Pro (spectral measuring head)
Measuring geometry: 45 Â°/0 Â° ring optics (circular lighting)
Source of light: gas filled wolfram lamp, light kind A
Screen diameter: 4.5 mm
Measuring area: 380 nm 730 nm, reflexion from 0 to 200%
Spectral resolution: Inside: 3.5 nm, issue: 10 nm
Device divergence: middle Î”E94 <= 0.4 (more than 12 tiles BCRA)
Repeat exactness: Î”E94 = 0.1 (on white ceramics)
Measuring surface/ unterlage:weiss after ISO 12647 / defined base possibly
Physical filters: No or UV cut (not changeable)

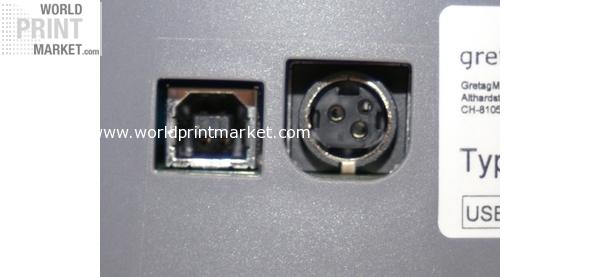

Interface: USB 1.1

Weight

---

Dimensions (LxWxH)

---

Location

Germany

Region

NRW
